products
The Adjustable Kicker is the only steel brace that attaches to wood or steel forms and can be used on dirt, wood, or concrete surfaces. It eliminates the inefficiency of wood bracing resulting in higher profits.
The quick adjustability allows for a faster, straighter wall line with zero waste, increasing production between 30%-60%. With three standard and custom sizes available, it can withstand up to a 2 ft. pour. When the job is completed, it detaches and folds down for the next application.
Say Goodbye to wooden bracing !
1. Products overview
Products
The Adjustable Kicker comes in 4 sizes and can accommodate up to a 2′ pour. All sizes can adjust to various angles.
sIZEs
- 200 Kicker : 8″ x 20″
- 300 Kicker : 12″ x 20″
- 400 Kicker : 16″ x 20″
- 800 Kicker : 32″ x 50″
APPLICATIONS
Applications include but are not limited to:
- Bridge Decks
- Slab on Grade
- Radius Forming
- Monolithic Pours
Bridge Decks

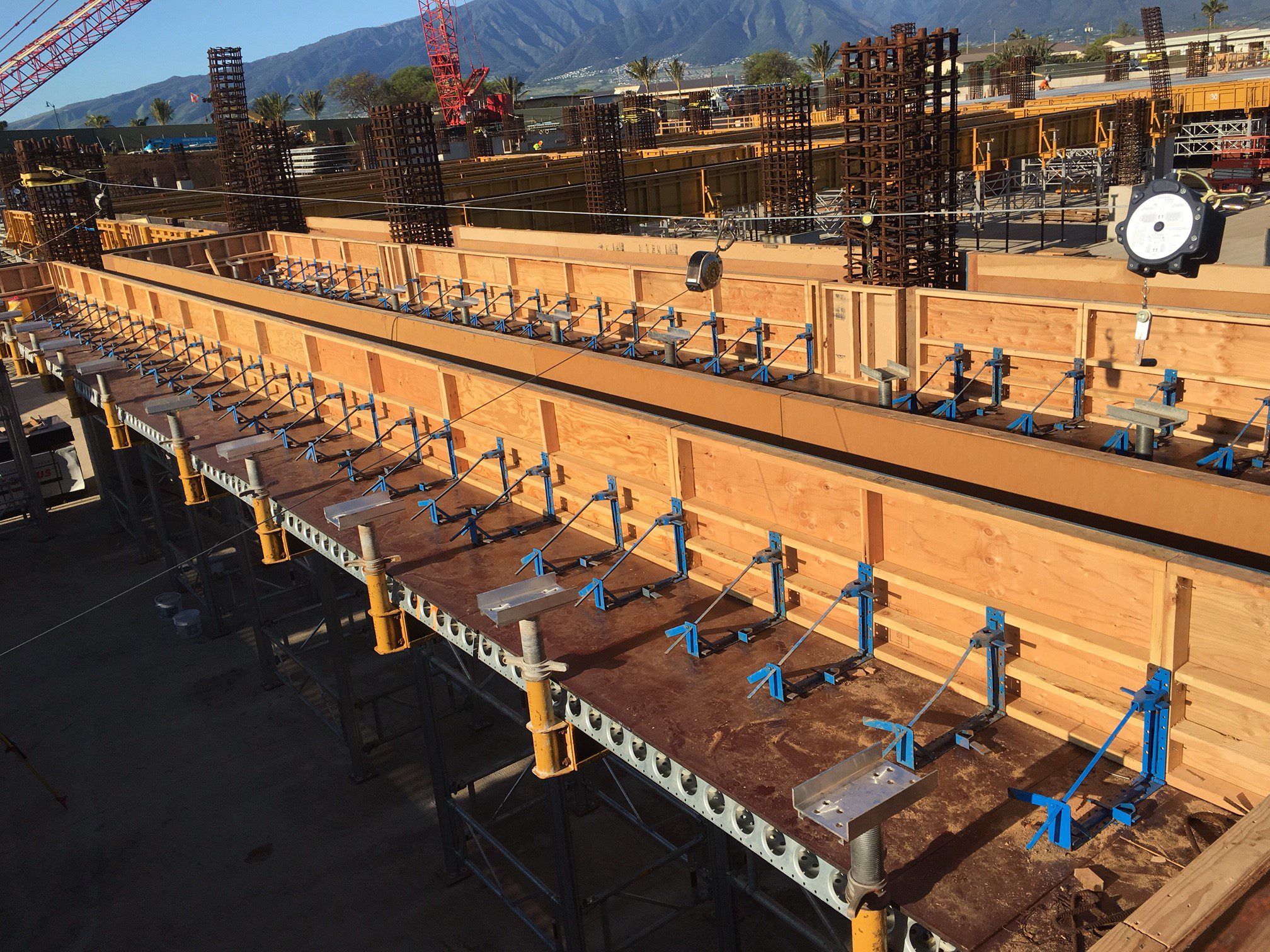

These are one of the Adjustable Kicker’s best and most time-saving applications. Simply nail the Kicker to the plywood surface and attach it to the form. Then align the form to the proper position.
Bridge decks and beam edges can be quickly set by anchoring the Adjustable Kicker into the plywood or concrete and aligning the form to position. Long radius or straight forms can be established faster by simply moving the form to its location and locking the handle into place. By using no lumber bracing, the Adjustable Kicker allows for a safer, cleaner work environment.
Slab on Grade
The Adjustable Kicker braces to both the top and bottom of the forms, which allows for straighter, more level floors with less work.
The Adjustable Kicker’s versatility allows contractors to increase performance in a wide variety of applications. From paving to residential developments, large projects demand high production.
Angled or plumb walls on earth or concrete surfaces can be achieved with zero waste
Radius Forming
Because of its versatility, the Adjustable Kicker makes radius curves faster, easier and more uniform.
Monolithic Pours
A third hole in the base of the Adjustable Kicker allows it to hang over an open footing, and you don’t have to worry about removing the pin from the concrete.
Contractors can suspend their forms over open footing by using the middle and rear stake pockets to anchor the Adjustable Kicker to the ground. This process allows for quick set up for one of the most time consuming jobs.
Here's what concrete professionals are saying about the "Adjustable Kicker"
“The Adjustable Kicker played a major role in the project exceeding its goals for savings, schedule, and quality. The ability of the Kicker to attach to either earth or concrete was critical to our success, and the Kicker’s durability and ability to withstand the forces we placed against it was exceptional. We were able to complete the job one month ahead of an already aggressive schedule.”
Jason Schulte, Assistant Superintendent for Mortenson
“The Adjustable Kicker saved me around $70,000 because it saved me about 2,200 man-hours.”
Jerry Strafford, Senior Project Manager for Taylor-Ball Construction, contractor for the Kansas City International Speedway.
“The quality control that the Adjustable Kicker allows for with its precise forming and bracing is unbelievable. I will require all contractors to use them on my jobs.
Jim Hawson, Project Manager for Triangle Investment Co.
3MAX
3MAX is the contractor’s long-lasting and economical solution to reinforcing concrete flatwork. Provides over 2X higher tensile capacity compared to grade 60 steel rebar, strengthening concrete for generations.
sIZE
7/16-inch rib to rib diameter, 3/8-inch load-bearing core diameter.
APPLICATIONS
Applications include but are not limited to:
- Parking Lots
- Curb & Gutter
- Driveways
- Patio & Sidewalks
- Pool Decks
DATASHEET
Learn more about 3MAX by checking out the datasheet HERE. Or contact your TNL representative today.
4max
4MAX is the contractor’s long-lasting and economical solution to temperature & shrinkage crack control. Provides 80% less crack initiation compared to steel reinforcement, maintaining high-performance for centuries.
sIZE
1/2-inch rib to rib diameter, 7/16-inch load-bearing core diameter.
APPLICATIONS
Applications include but are not limited to:
- Slab on Grade
- Decorative Concrete
- Street Pavement
- Short retaining & Stem Walls
- Pool Decks
DATASHEET
Learn more about 4MAX by checking out the datasheet HERE. Or contact your TNL representative today.
4EQ Structural Bar®
4EQ Structural Bar® is a high performance rebar, engineered to replace steel rebar in vertical and structural applications. 4EQ Structural Bar® is the first GFRP rebar accepted by ICC-ES, making it compatible with the Residential Building Code and Commercial Building Code.
sIZE
1/2-inch rib to rib diameter, 7/16-inch load-bearing core diameter.
APPLICATIONS
Use 4EQ Structural Bar® with TNL’s prescriptive reinforcement guides and simplify your workflow. Applications include but are not limited to:
- Foundation Walls
- Suspended Slabs
- Most Structural Applications
DATASHEET
Learn more about 4EQ Structural Bar® by checking out the datasheet HERE. Or contact your TNL representative today.
High-Mod Bars
MST-BAR offers a full line of High-Mod Bars as a superior reinforcement system, completely replacing epoxy-coated, galvanized, stainless steel, and plain steel rebar. Stocked in sizes #3 through #8, custom lengths and diameters available upon request.
APPLICATIONS
Applications include but are not limited to:
- Commercial Construction
- Pre-cast Concrete
- Industrial & Utility
- Infrastructure & DOT + more!
DATASHEET
Learn more about High-Mod Bars by checking out the datasheet HERE. Or contact your TNL representative today.
MST-BAR® BEND
MST-BAR® can bend and produce any bent shape and any dimension quickly and efficiently. Standard pricing per linear footage regardless of bent shape makes estimating simple to complete your project.
size
Two-dimensional and three-dimensional shapes are available in sizes #3 through #6. MST-BAR® cab be bent in to any shape, 2D (along X,Y) and 3D (along X,Y,Z) and Spiral (Round or Square). The minimum bend radius is 5.5 times the diameter of the bar.
learn more
To learn more about MST-BAR® Bend Bars, contact your TNL representative today.
2. Key Advantages
- Tough Steel Construction.
- Allows for staighter edges.
- Quicker set up and tear down than traditional bracing.
- Adaptable to a wide variety of applications.
- Replaces gang forms on riser pours.
- Can adjust to various angles and heights.
- Works with steel-ply and curb forms.
